Clearifiers and Clariflocculator

Mechanism Engineering  has a tradition of manufacturing and supplying the industry’s highest quality and most reliable clarifier mechanisms from basic bridge or pipe supported mechanism to those with the most complex and demanding special requirements. ME  mechanism are driven by high torque designed drive units that have corrosion resistant and precision ratings superior to any drive on the market, and exceed the industry’s highest standards.

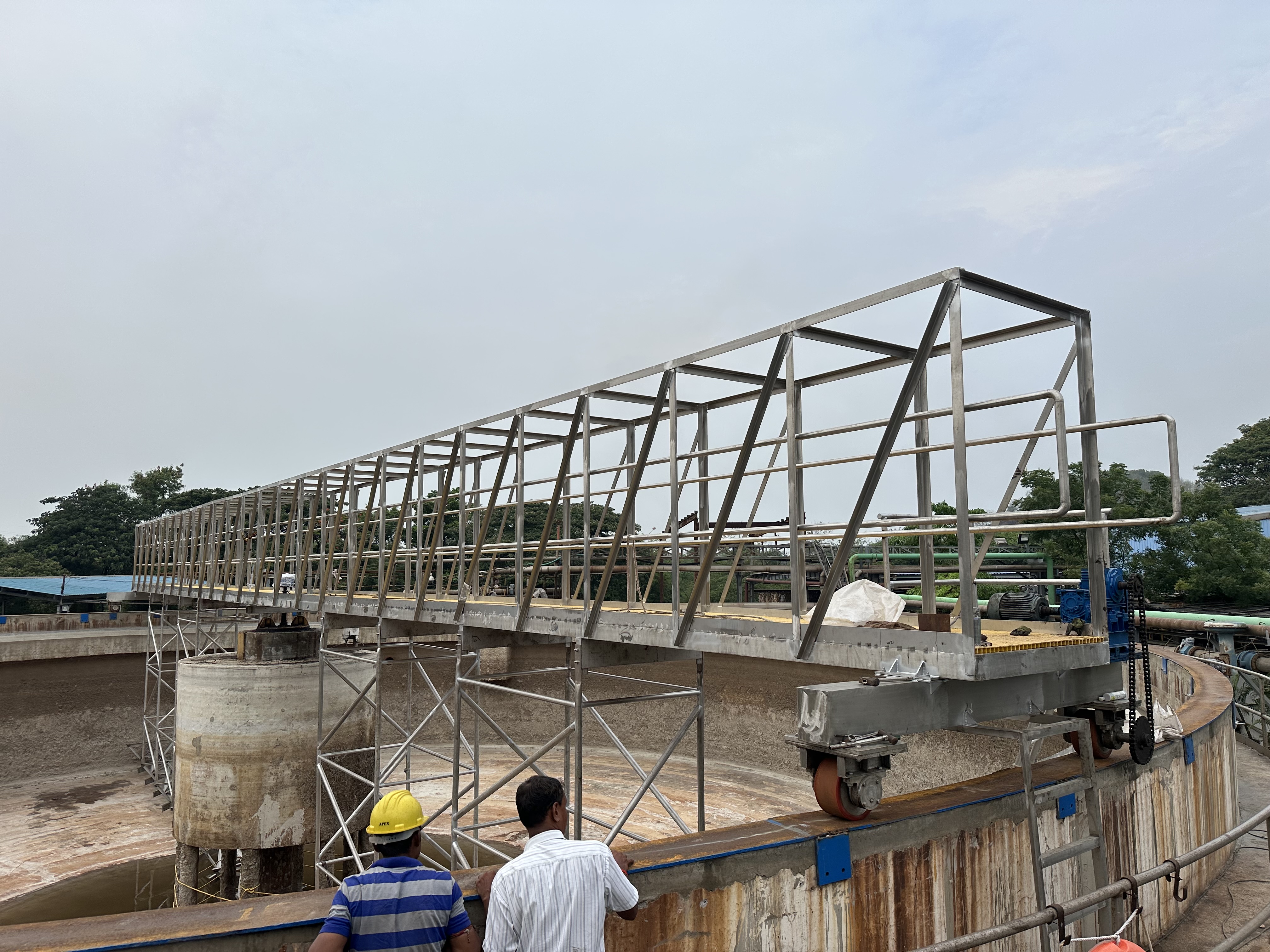

Mechanism Engineering  versatile clarifiers with central and peripheral drive are specially designed and developed for a vast range of applications. High toque gear drive with overload protection facility provided for minimal maintenance. Mechanism Engineering  offers a wide range of clarifiers / clariflocculators ranging from 5 to 50 meter diameter tanks.



The Lamella clarifier name is derived from the laminar flow regime that is maintained between the two layers of the media.



 The EMC Series Slant Plate Clarifiers are designed for efficient removal of readily setteable solids. In this slant plate clarifiers, setting take place on the plate surface and the effective setting area is the plates surface area.



The EMC's compact, small footprint design requires less installation space than conventional or tube type clarifiers. The EMC design incorporates slanted plate setting surfaces pitched at a 55° angle from the horizontal with uniform plate spacing. Due to plate angle the solids slide down the plates into the solids hopper below the plate pack. The simple, inexpensive design, combined with no moving parts or sludge auger makes the EMC easy to install, operate and maintain.
